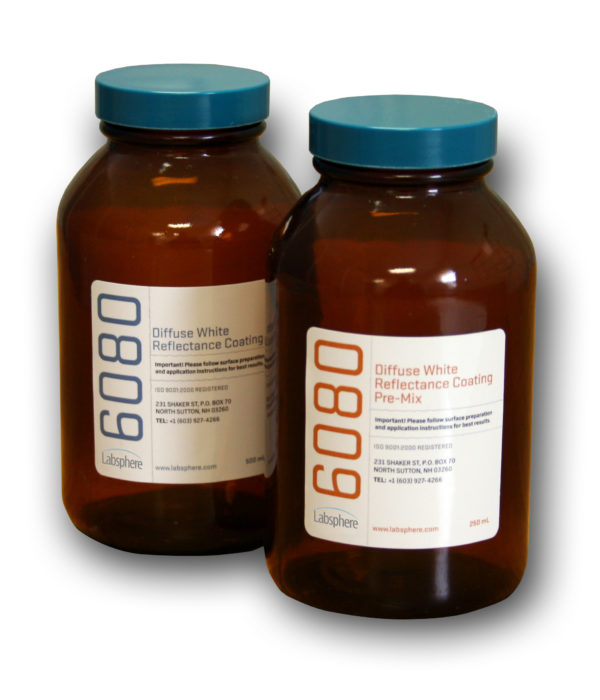

6080 White Reflectance Coating

Labsphere’s 6080 White Reflectance Coating is a diffuse white coating “paint” for reflectance applications covering the UV-VIS-NIR wavelength region. This coating is intended for customers with small-scale applications, those that require a touchup to their original application, or those who wish to prototype components using a high-reflectance white coating. This non-luminescent coating yields reflectance values of 95 to 98% over the wavelength region from 300 to 1200 nm.
6080 is ideal for use in integrating spheres, reflectance spectrophotometers, sphere photometers, lamp housings, display backlight reflectors, optical components and other applications that call for diffuse illumination or reflectance. This coating also allows Labsphere Spectraflect® and coated integrating sphere systems to be touched up in-between system recalibrations and re-coatings.
The 6080 coating is created in Labsphere’s dedicated coating laboratory using the highest ISO-9001: 2000 procedures and requires no additional dilution or mixing. The coating is packaged in airtight, containers and is shipped with surface preparation and application instructions.

Please Note: A HAZMAT fee will be applied to all Ready to Use Orders

The Pre-Mix 6080 is also available, requiring dilution with 200 proof Ethanol prior to use. The white reflectance pre-mix is available in quantities of 250 mL and is shipped with dilution, surface preparation, and application instructions. With proper dilution, 250 mL of mix yields approximately 500 mL of coating.

$126.00$1,550.00

Request a QuoteNeed it Customized?

*Select Product Option First

BEST FOR:
Light reflection or collection optics
Display backlight reflectors
Applications requiring increased luminance from a light source
Energy efficiency
UV-VIS-NIR applications

FEATURES:
High reflectance (>98%) gives you the most from your light source
Highly Lambertian for evenly distributed light, avoiding hotspots
Optically stable for reliable performance
Temperature and UV durable
Non-toxic
Ready-to-use or pre-mix spray coating options
