HELIOS® Plus-DR High Dynamic Range Systems

For the most demanding and extreme dynamic range imaging requirements.

Features:

· Broadband 3000K black body like spectrums
· Extreme dynamic range from full day light to night vision radiances
· Manual and automatic light level control options

Contact for Pricing

Request a Quote Need it Customized?

Categories: Imaging, Sensing & Remote Sensor Calibration Solutions, Broadband, Pre-Launch Uniform Calibration Sources

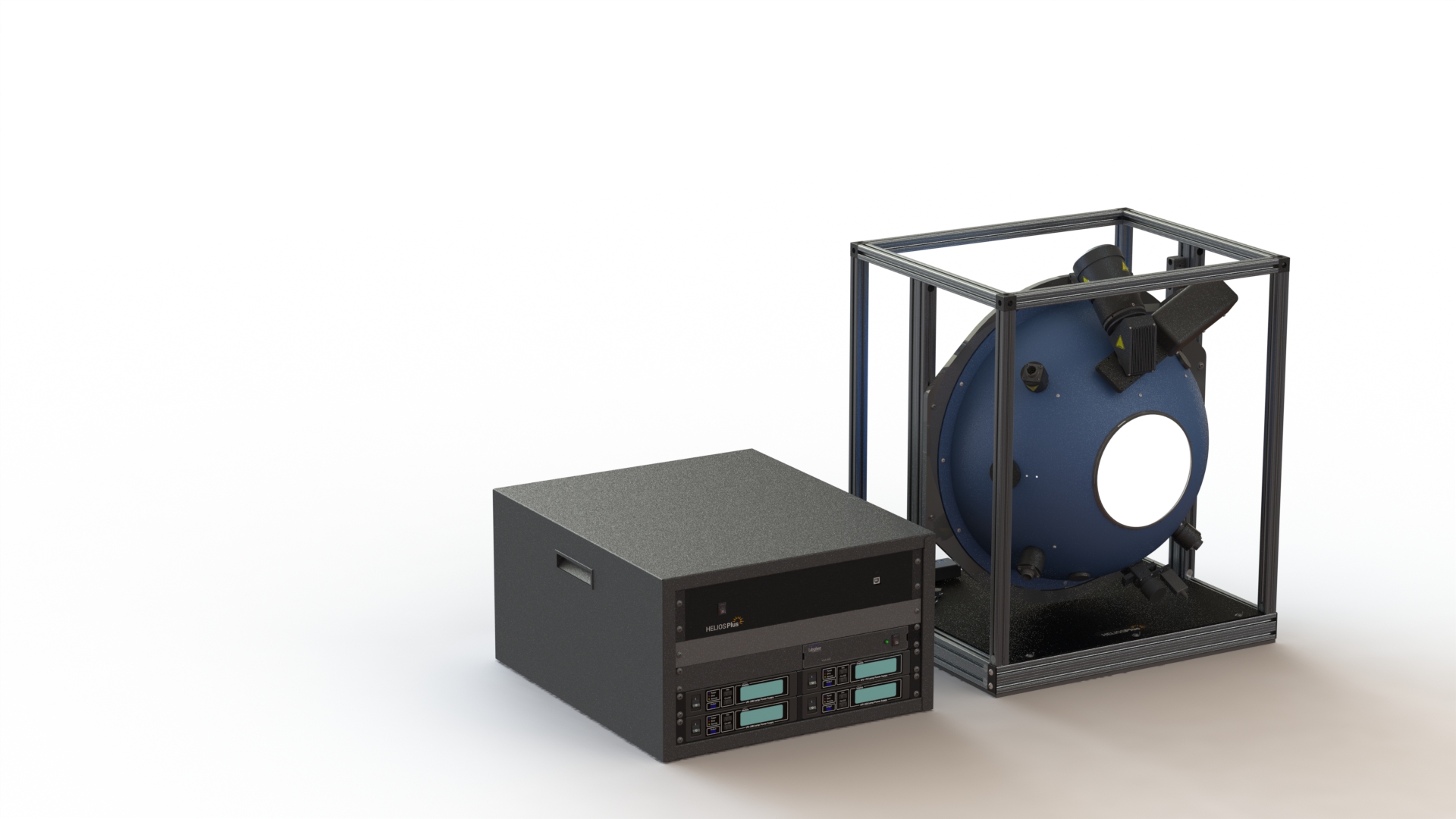

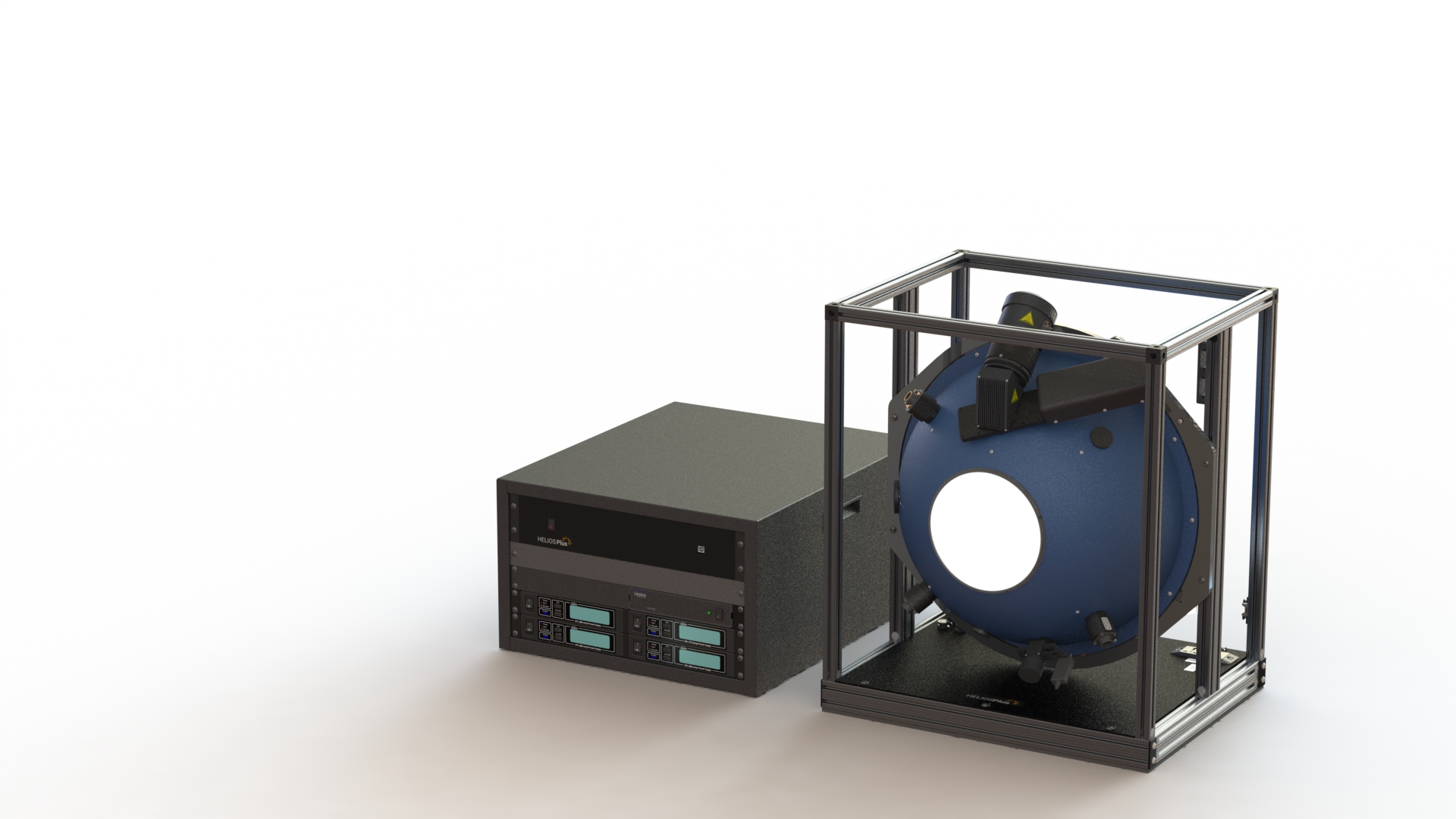

The HELIOSPlus-DR, D Family systems are classic QTH-based calibration sources designed for extreme dynamic ranges. Multiple lamps, attenuators and detector choices allow you to move effortlessly from sunlight to night vision levels.

HELIOS®Plus-AMA Air Mass-Albedo Sunlight Systems [Datasheet]
HELIOS® Plus-VM Variable Manual Systems [Datasheet]
HELIOS® Plus-LL Low Level Systems [Datasheet]
HELIOS® Plus-DR High Dynamic Range Systems [Datasheet]

System	Sphere Dia	Port Dia	Max Luminance, cd/m2	Illuminance at Port, lux	CCT Range	Variable Attenuator	# Steps

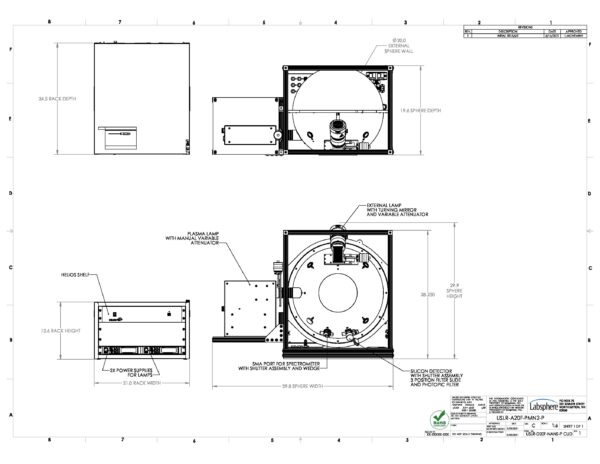

USLR-D20F-NANS-P	20	8	24,000	78,000	3000K +/- 50K	Advanced, VAA	8.80E+06
USLR-D20F-NDNN-P	20	8	24,000	78,000	3000K +/- 50K	Dynamic, VAD	4.80E+04

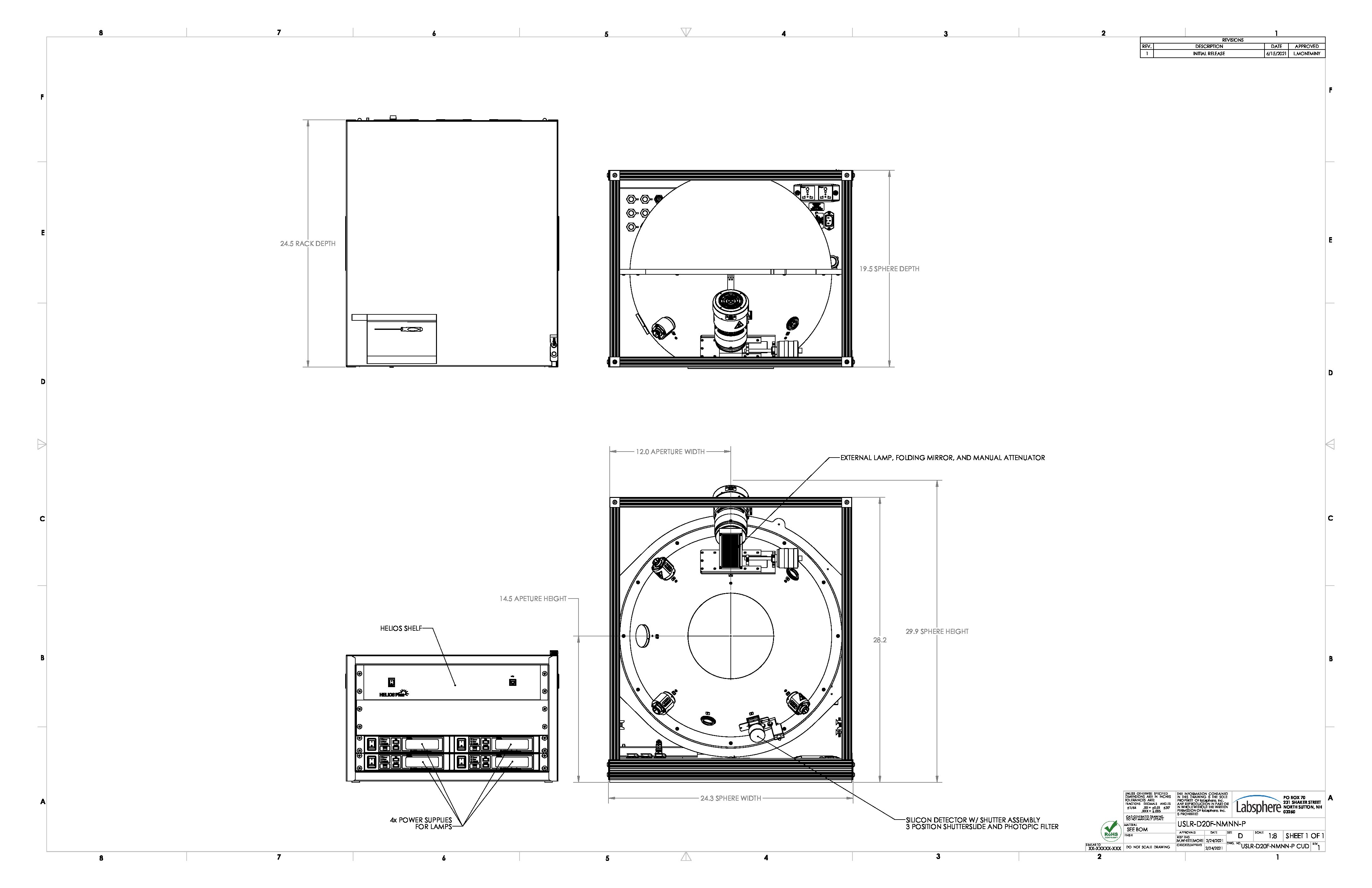

USLR-D20F-NMNN-P	20	8	24,000	78,000	3000K +/- 50K	Manual, VA-MM	4.00E+04
USLR-D12F-NANS-P	12	4	40,000	135,000	3000K +/- 50K	Advanced, VAA	6.60E+06
USLR-D12L-NANS-P	12	4	50,000	157,000	3000K +/- 50K	Advanced, VAA	6.60E+06

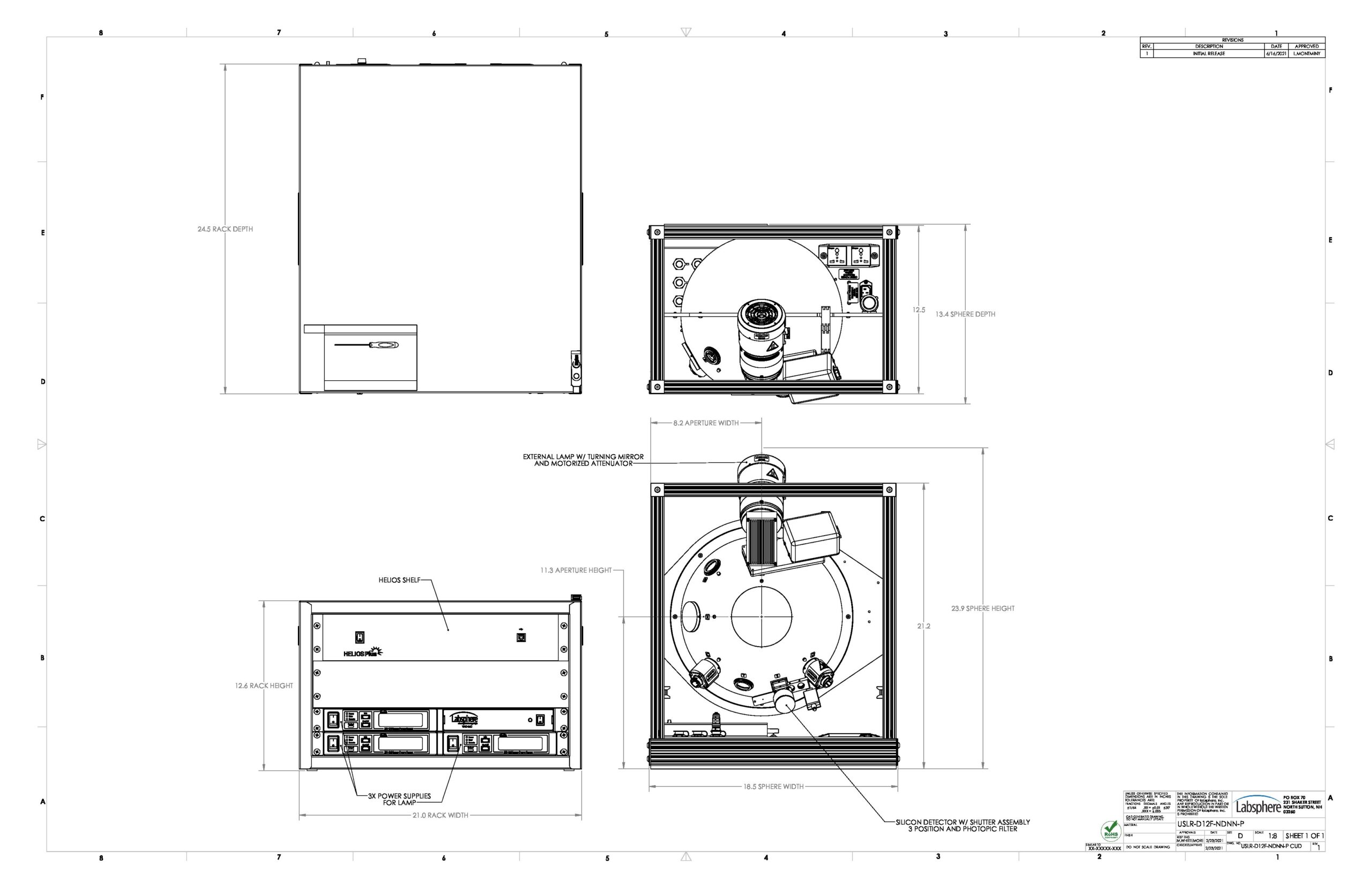

USLR-D12F-NDNN-P	12	4	37,500	117,750	3000K +/- 50K	Dynamic, VAD	3.60E+04
USLR-D12L-NDNN-P	12	4	50,000	157,000	3000K +/- 50K	Dynamic, VAD	3.60E+04

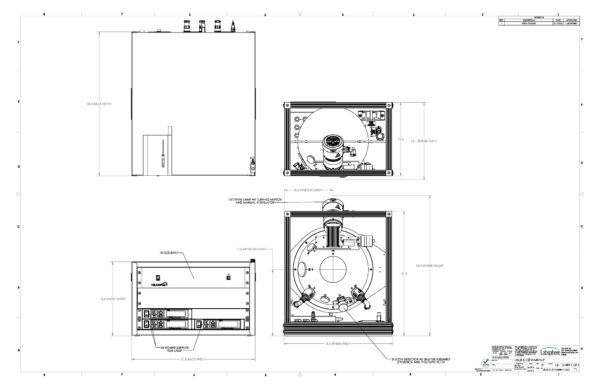

USLR-D12F-NMNN-P	12	4	37,500	117,750	3000K +/- 50K	Manual, VA-MM	3.00E+04
USLR-D12L-NMNN-P	12	4	50,000	157,000	3000K +/- 50K	Manual, VA-MM	3.00E+04
USLR-D08F-NDNN-P	8	2	60,000	188,400	3000K +/- 50K	Dynamic, VAD	2.40E+04
USLR-D08L-NDNN-P	8	2	80,000	251,200	3000K +/- 50K	Dynamic, VAD	2.40E+04

NOTE: Depending on the application and the desired uncertainty levels, custom calibrations may be required to characterize the system under different operating conditions. Our application engineers would be happy to discuss this with you and help define the best system and calibrations to meet your requirements.

LET’S TALK LET’S EMAIL

Meet Your Dynamic Range Requirements

Variable attenuators are a key element in achieving the dynamic range capability of the HELIOS®Plus D Family systems. They allow you to adjust the radiance output of your system without affecting the spectral fidelity. Three variable attenuator options are available (VAA, VAD and VAM) with varying degrees of automation and resolution performance.

heliosense product screen

Automate Your Testing Routines

Automate your R&D testing routines with HELIOSense. Responsive Hunt & Seek feedback loops using attenuators, detectors, and spectrometers, or implement Scripting functions for simple programs inside and outside the HELIOSense GUI simplify your testing. HELIOSense Software is the primary interface for HELIOSPlus components and systems. It is a flexible architecture where any hardware built into the Labsphere API (LSAPI) can be recognized and used in HELIOSPlus systems.

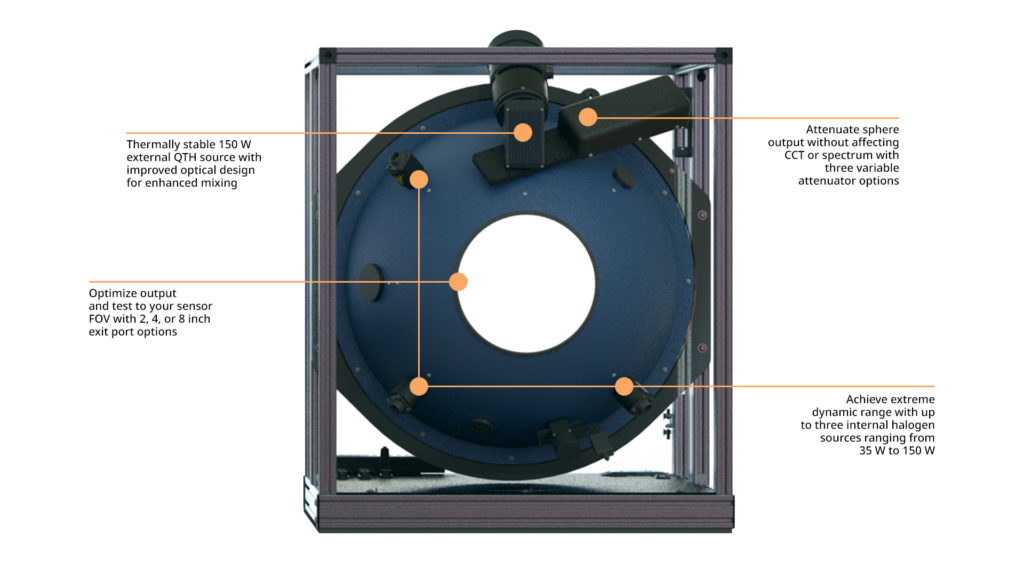

helios product key points

Specifications

Whether you’re testing CMOS sensors, multiple gain stage focal plane arrays, or just need to test to the most demanding imaging requirements, there’s a HELIOSPlus D Family system for you.

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 60,000 cd/m²
Variable Attenuator Dynamic Variable Attenuator, VAD-012
Number of Steps in System Range 2.40E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 2.20E+04/14/86
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 80,000 cd/m²
Variable Attenuator Dynamic Variable Attenuator, VAD-012
Number of Steps in System Range 2.40E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 2.20E+04/14/86
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectralon

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 37,500 cd/m²
Variable Attenuator Advanced Variable Attenuator, VAA-220A
Number of Steps in System Range 6.60E+06 (#lamps*VA Steps)
Dynamic Range/Bits/dB 8.63E+07/26/158
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 50,000 cd/m²
Variable Attenuator Advanced Variable Attenuator, VAA-220A
Number of Steps in System Range 6.60E+06 (#lamps*VA Steps)
Dynamic Range/Bits/dB 1.15E+08/26/160
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectralon

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 37,500 cd/m²
Variable Attenuator Dynamic Variable Attenuator, VAD-012
Number of Steps in System Range 3.60E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 9.49E+04/16/93
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 50,000 cd/m²
Variable Attenuator Dynamic Variable Attenuator, VAD-012
Number of Steps in System Range 3.60E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 1.27E+05/16/101
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectralon

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 37,500 cd/m²
Variable Attenuator Manual Micrometer Variable Attenuator, VA-MM
Number of Steps in System Range 3.00E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 4.31E+05/17/111
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 37,500 cd/m²
Variable Attenuator Manual Micrometer Variable Attenuator, VA-MM
Number of Steps in System Range 3.00E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 4.31E+05/17/111
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 24,000 cd/m²
Variable Attenuator Advanced Variable Attenuator, VAA-220A
Number of Steps in System Range 8.80E+06 (#lamps*VA Steps)
Dynamic Range/Bits/dB 6.66e+07/25/154
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 24,000 cd/m²
Variable Attenuator Dynamic Variable Attenuator, VAD-012
Number of Steps in System Range 4.80E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 7.33E+04/16/99
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect

HELIOS® Plus DR High Dynamic Range Systems

Expected Luminance 24,000 cd/m²
Variable Attenuator Manual Micrometer Variable Attenuator, VA-MM
Number of Steps in System Range 4.00E+04 (#lamps*VA Steps)
Dynamic Range/Bits/dB 3.33E+05/18/109
Angular Uniform FOV (Full Angle) +/-2.0% - 35°
Coating/Material Spectraflect
