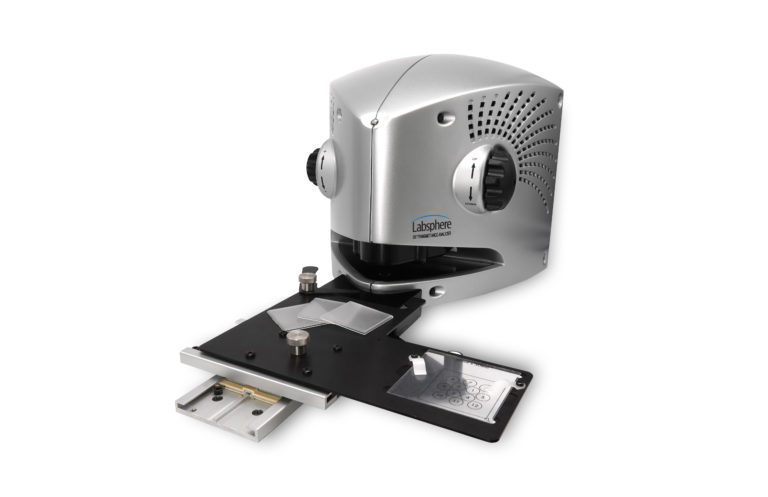

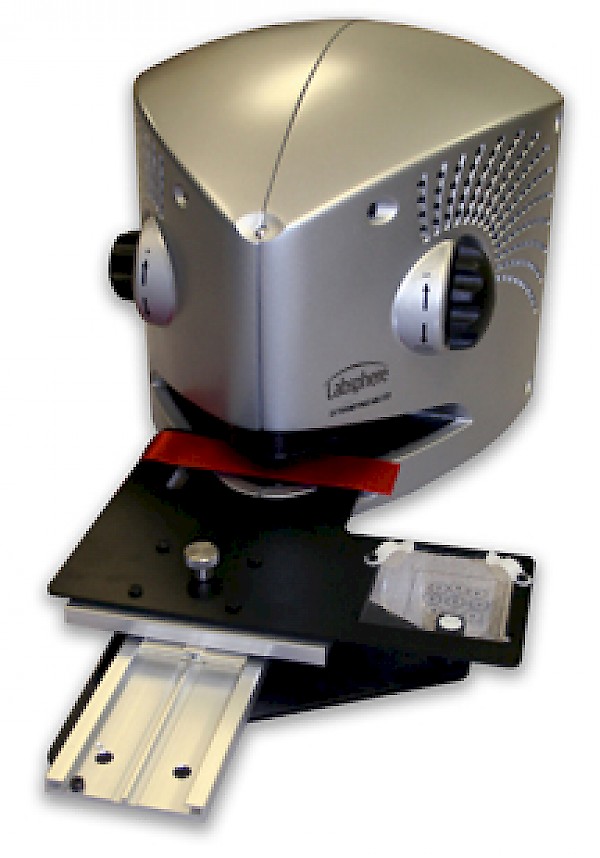

UV-2000F Ultraviolet Transmittance Analyzer
Achieve instantaneous UPF protection factor values of fabric/textile samples
Labsphere’s UV-2000F incorporates the latest component and software technology into an industry proven system architecture, to achieve accurate UPF, critical wavelength and UVA:UVB ratio of fabric samples. Driven by rapidly evolving industry requirements to simplify research and development or quality control for fabric samples, the UV-2000F is designed to comply with recently approved testing methods such as AS/NZS 4399:2017, EN 13758-1:2007 (EN 13758 1:2001+A1:2006), AATCC 183:2020, GB/T18830:2009, Japan Garment Association standard and Japanese Industrial Standards (JIS).
Features:
- One-touch sample analysis; sample scans within five seconds
- Automatic calculations of spectral transmittance, UPF, critical wavelength and UVA:UVB ratios
- Performance validation routine
- Automatic calculations of UPF parameters per AATCC 183:2020, AS/NZS 4399:1996, AS/NZS 4399:2017, AS 4399:2020, EN 13758-1:2007 (EN 13758-1:2001+A1:2006), GB/T18830:2009, Japan Garment Association Standard, JIS L 1925:2019, and user defined methods
Contact for Pricing
Specifications
- Order Number AA-00909-100
- Wavelength Range 250 to 450 nm
- Wavelength Accuracy +/- 1 nm
- Bandwidth (FWHM) < 4 nm
- Wavelength Step (Data Interval) 1 nm
- Transmittance 0-100%
- Absorbance 0 - 2.7 A (Dual Doped PMMA Method)
- UPF 1 - 50+
