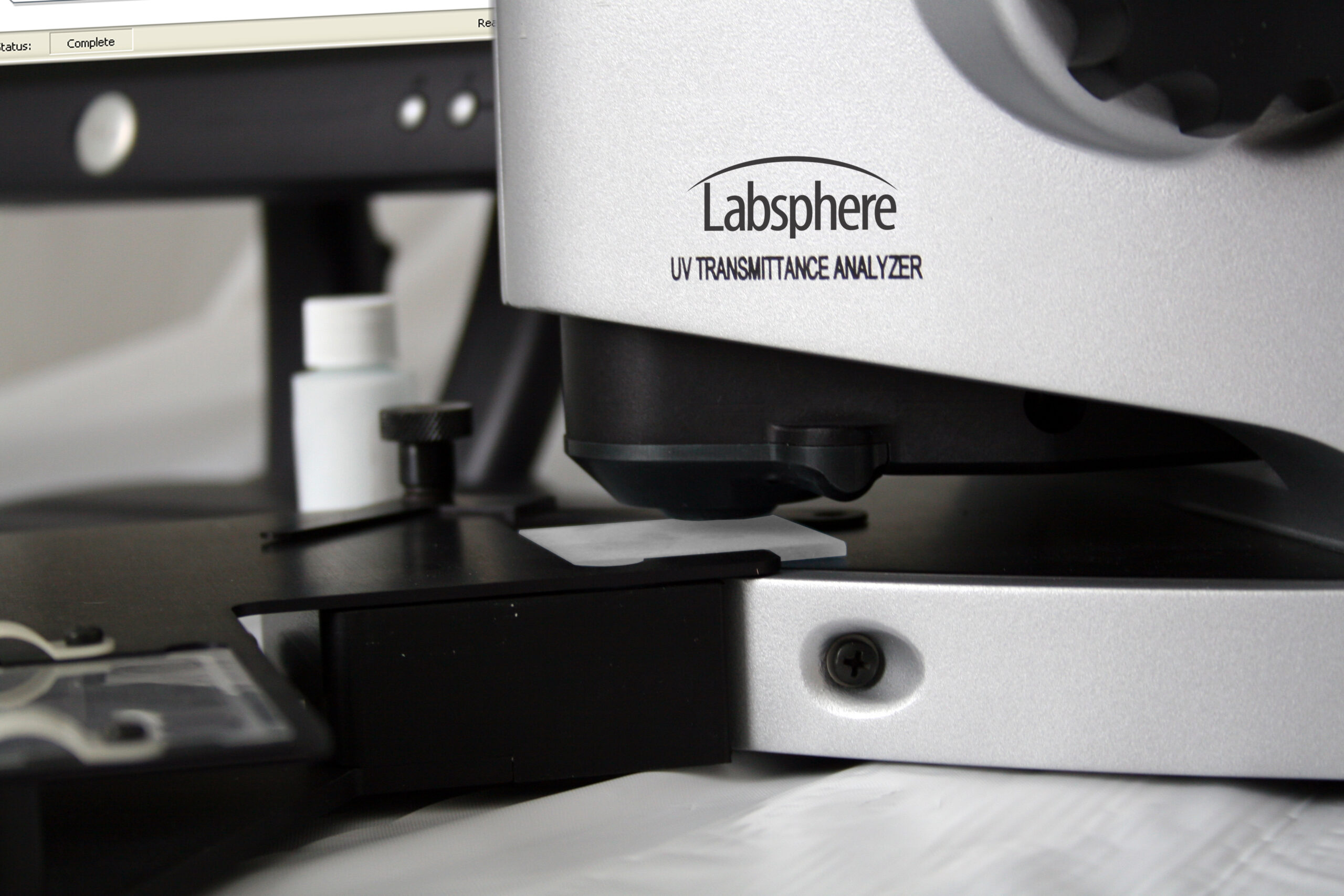

UV-2000S Ultraviolet Transmittance Analyzer
One touch sample analysis. Results in less than five seconds
Labsphere’s UV-2000S incorporates the latest component and software technology to achieve accurate in-vitro SPF/UVA-Protection Factor analysis of sun care products developed to receive the “very high” sun protection label. Driven by rapidly evolving industry requirements to simplify product labeling and new in-vitro methods to validate product UVA Protection, the UV-2000S is designed to comply with recently approved in-vitro methods, such as COLIPA UVA-PF, ISO 24443, Boots Star Rating and the US FDA, as well as several pending global standards/methods.
Features:
- Easy-to-use menu driven application
- Automatic calculations SPF, UVA to UVB ratio, critical wavelength FDA 2011 Testing Method, COLIPA Method, Boots Star Rating
- Easy and accurate sample positioning
- Manual stage positions for pre and post irradiation
- New wavelength standard captures six relevant spectral bands
- Accurate, repeatable measurements
- Simple instrument performance validation routine
Contact for Pricing
Powerful Application Software
Developed with .NET Framework®, the UV-2000S Software features different in-vitro measurement methods for UVA/UVB protection factors of sunscreen including the COLIPA, ISO 24443, Boots Star and FDA methods. This easy to use Windows® 7 or 10 compatible software facilitates capture/archival/retrieval and export of all data including bare substrate data that may impact UVA-PF due to surface roughness.
A built-in report function generates essential information at the click of a button. Reports include necessary information such as date, time, operator name, sample identification, and test parameters.
Specifications
System specifications are based on a wavelength range of 290 to 400 nm
- Order Number AA-00909-000
- Wavelength Range 250 to 450 nm
- Wavelength Accuracy +/- nm
- Bandwidth (FWHM) < 4 nm
- Wavelength Step (Data Interval) 1 nm
- Integrating Sphere Port Area < 5%
- Transmittance 0 - 100%
- Absorbance 0 - 2.7 A (Dual Doped PMMA Method)
- SPF 1 - 50+
- Scan Time < 5 s
